AC Input: Consuming: |
Digital Input: PCM: DSD: MQA: |
Windows system under Win10 will need to install the ASIO driver developed by Questyle. Win10 system supports DOP DSD 256 without installing the driver, and supports Native DSD 512 with the driver installed.

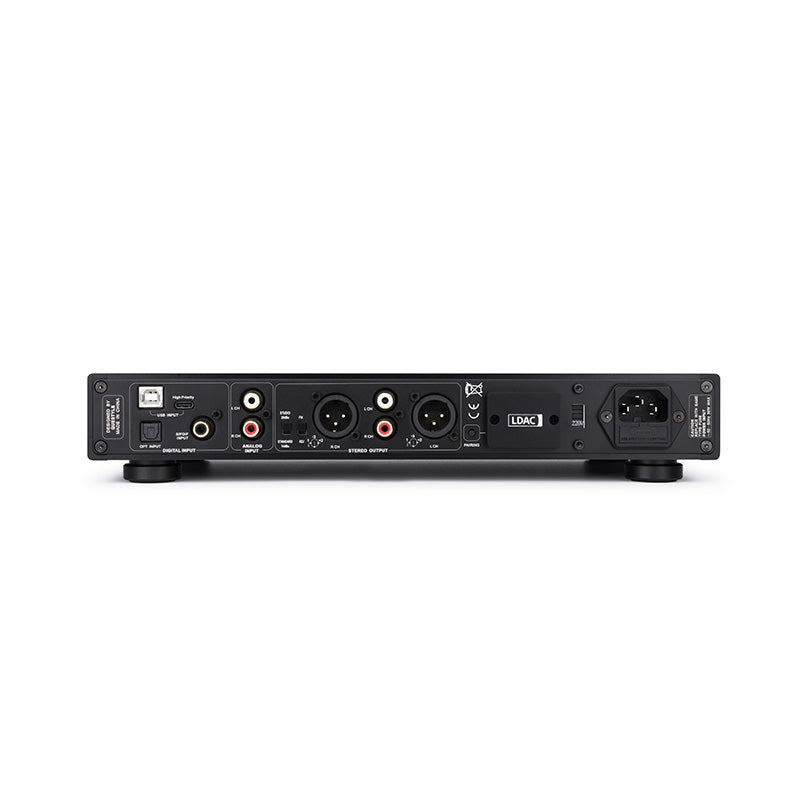

Optical Input x 1: PCM: 44.1kHz~192kHz/24bit Coaxial Input x 1:PCM: 44.1kHz~192kHz/24bit Bluetooth Input x 1: SBC, AAC, LDAC (At the highest level of 96kHz/24bit, 990kps/909kps) Analog Input: RCA x 1, 2Vrms standard level |
Optical Input x 1: PCM: 44.1kHz~192kHz/24bit Coaxial Input x 1: PCM: 44.1kHz~192kHz/24bit Bluetooth Input x 1: SBC, AAC, LDAC (At the highest level of 96kHz/24bit, 990kps/909kps) Analog Input: RCA x 1, 2Vrms standard level |
You can set High/Standard bias through the BIAS switch on the front panel of the headphone amplifier, and set Standard/Low gain through the four Gain switches on the bottom of the headphone amplifier.

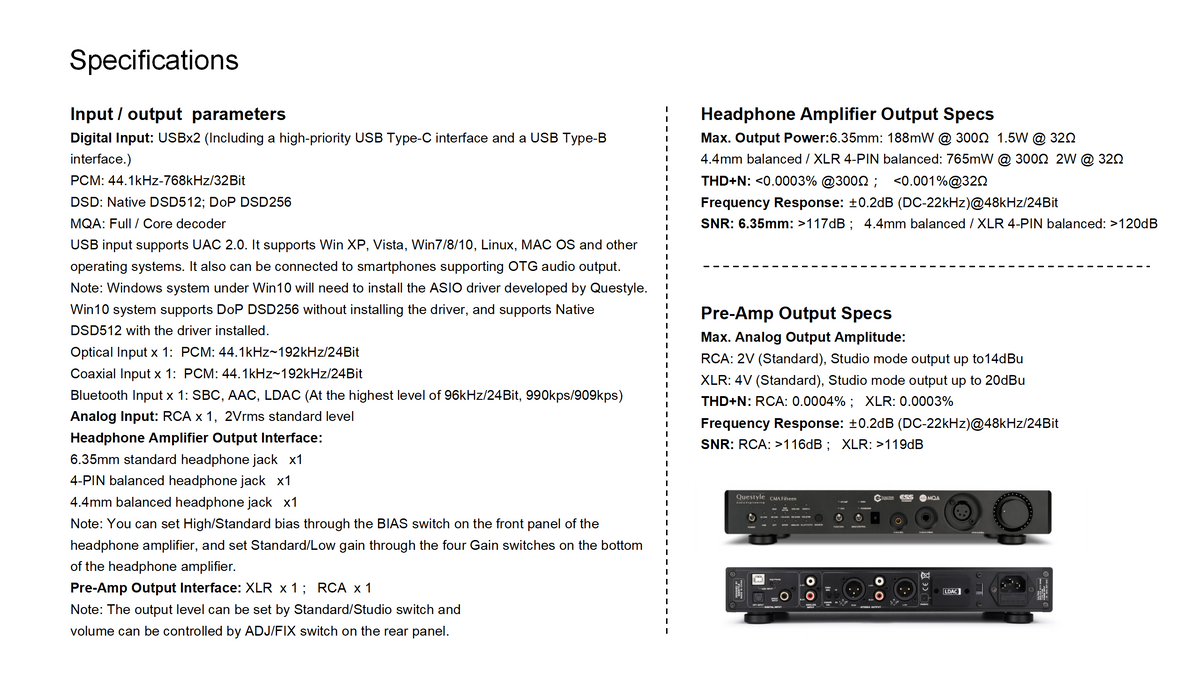

Pre-Amp Output Interface: XLR x 1 RCA x 1 |
Pre-Amp Output Specs Max Analog Output Amplitude: RCA: 2V (Standard), Studio mode output up to14dBu XLR: 4V (Standard), Studio mode output up to 20dBu THD+N: RCA: 0.0004% XLR: 0.0003% Frequency Response: ±0.2dB (DC-22kHz)@48kHz/24bit) SNR: RCA: >116dB XLR: >119dB | Max Output Power: 6.35mm: 188mW @ 300Ω 1.5W @ 32Ω 4.4mm balanced / XLR 4-PIN balanced: 765mW @ 300Ω 2W @ 32Ω THD+N: <0.0003% @300Ω <0.001%@32Ω Frequency Response: ±0.2dB (DC-22kHz)@44.1kHz/24bit SNR: 6.35mm: >117dB 4.4mm balanced / XLR 4-PIN balanced: >120dB |
